Note* This kit does NOT come with a Scotts steering stabilizer.
The BRP Vibration Isolating SUB Mount is for the rider who doesn't feel the need for a stabilizer, but wants the benefits of vibration isolation and may want to upgrade to a stabilizer at a later time. This kit is expandable to later add a Scotts Stabilizer and tower pin kit if so desired.
- 38mm taller bar position
- 2 densities of rubber cushioning included.
- Handlebars are moved forward 13mm to open up the rider cockpit
- Added vibration isolation from the motorcycle.
- Billet aluminum anodized black.
- BRP KTM Adventure Vibration Isolaton SUB Mounts are designed exclusively to fit the OEM triple clamps.
This kit is designed for those of you who already have a Scotts stabilizer and frame bracket and would like to go sub mounted. Kit includes Sub adapter and all necessary hardware. Designed to mount a Scotts stabilizer below the handlebar using your OEM triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing bar mount holes. SUB Mounting a stabilizer offers several benefits over a conventional "above bar" setup and is becoming a very popular setup for GP's, motocross, off road, dual sport applications and riders of taller stature.
- Offers an approximately 14mm taller bar position
- Lower Bend Bars can be used to compensate for additional height.
- SUB Mounting reduces the risk of bodily injury
- Stabilizer is tucked away and protected from potential damage from a crash.

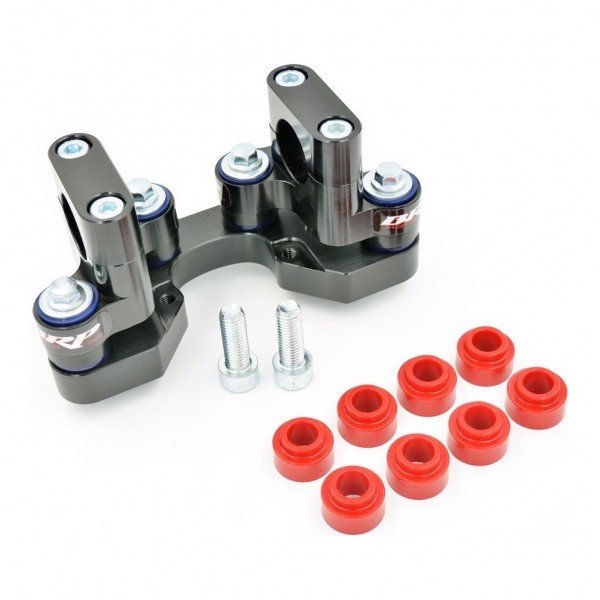

KIT INCLUDES:
1) BRP Rubber Mounted SUB Adapter
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
& All Necessary Hardware.
SPECIAL NOTES:
Be sure to select the proper year, model and triple clamp in order to get the correct part for your order. When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted "going under the body of the unit". To reverse the link arm we recommend using a Scotts Link Arm Puller (Sold Separately). This unit cannot be used with cycra center reach mount handguards.
